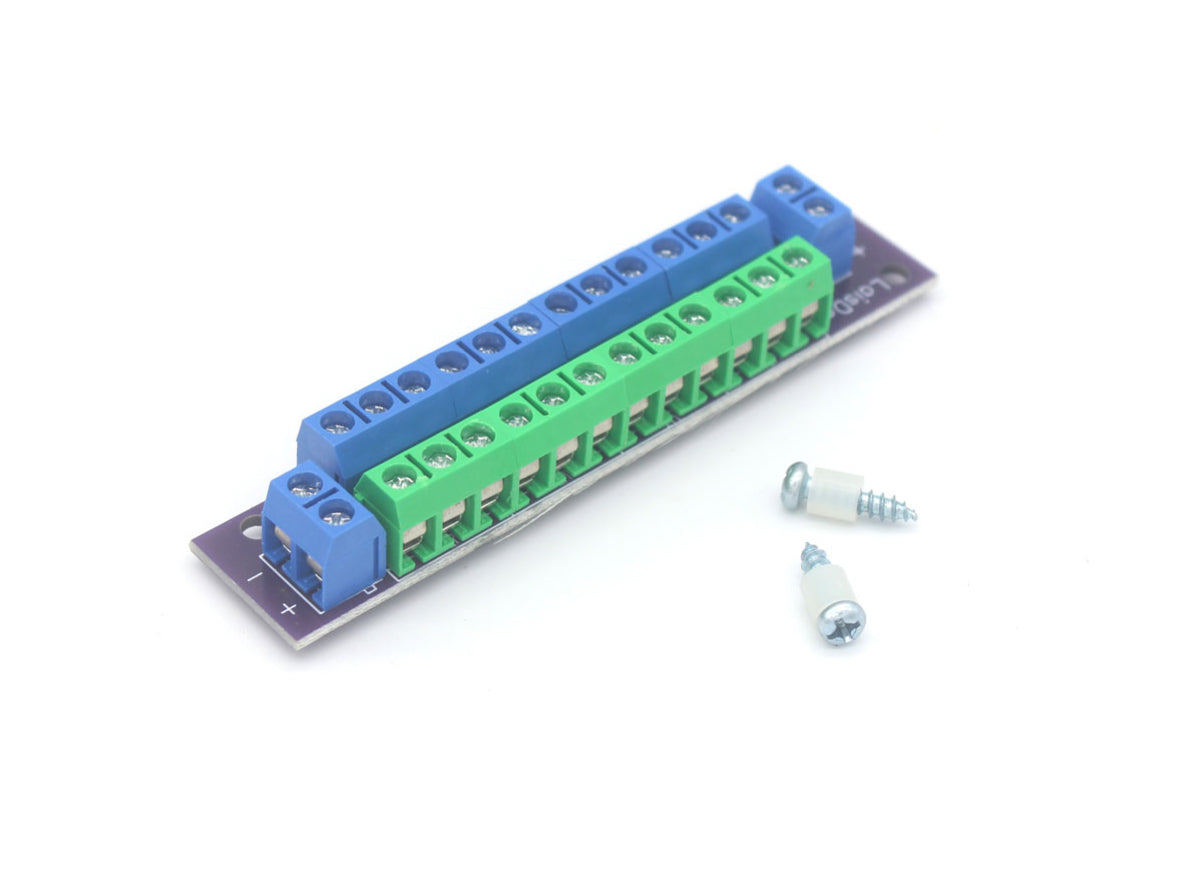

Lais DCC Power Distribution Board for DC and AC Voltage 860036

This distribution is the ideal solution for the model train to supply all lighting. There are 2 connectors for the input of voltage and 2 x 13 connectors for the outputs on the distributor. And we have two hole for connect two or more distributions in series if one PCS is not enough for you. 2 holes for mounting with wide spacers.

• Dimensions: Approx. 90mm(L) x 18mm(W) x 14mm(H).
• Maximum voltage: 30V AC / DC AC and DC voltage. Total supply
• Maximum current: 10A (supply at terminal 2-pole).
• Current carrying capacity per connection: 10A(max).
• With Two Extra Output at another end for extension for another Board Set
